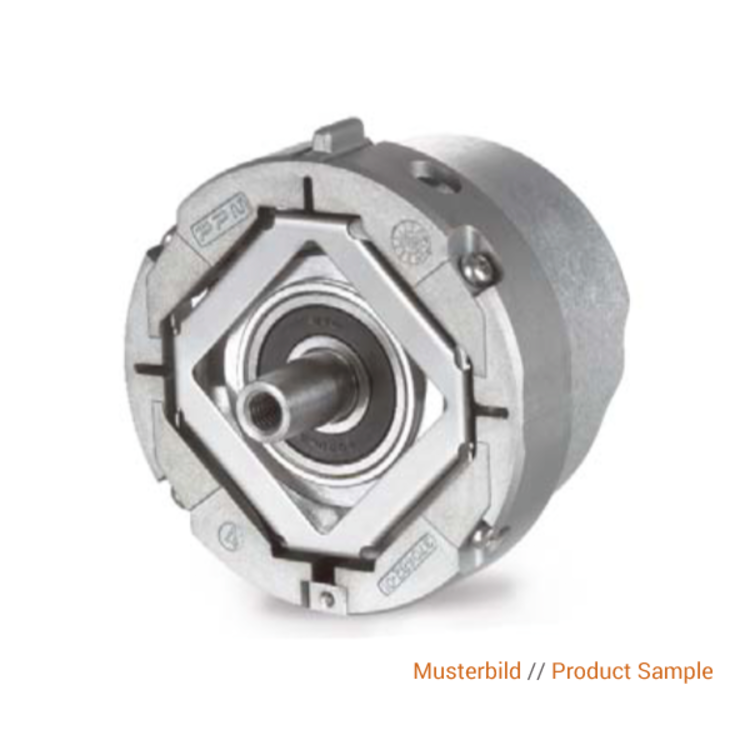

Heidenhain ERN 1387 - 2048 // ID 749144-01

•••••

Article code: 749144-01

Quantity:

€291,00

*Excl. tax Excl. Shipping costs

Add to cart

Delivery time: 4 - 7 working days

Overview

ERN 1387 2048 62S14-70 K 0,00 .. 65B.. 40 01 .. .. RA ~1Vss 05 01

Incremental rotary encoder with integral bearing, line count 2048 and output signal ~1Vpp for mounting by stator coupling.

Details

100% Quality.

100% Reliability.

100% Satisfaction.

Reviews

•••••

0 stars based on 0 reviews

Add your review

Version	ERN 1387 - 2048 // ID 749144-01
Manufacturer	Heidenhain
Line count	2048
Add. circular-scale track	1 sine and 1 cosine signal/revolution
Output signal	~1Vpp
Cutoff frequency (-3dB)	210.00 kHz
Power supply	5V (+-5%)
Coupling version	Expanding ring coupling for mating diameter 65mm
Shaft	Taper shaft 1:10, functional diameter 9.25mm, back-off thread M10 and M6
Degree of protection	IP 40 (EN 60529)
Operating temperature	-40/+120 °C
Electrical connection	Plug connector, straight, double-row, 14-pin, with locking mechanism and walls
Pin configuration	D319274
Connecting direction	Cable outlet for axial and radial use
Included part	Mounting kit with screws (M5x50 and M5x47) and warning information
Weight	0.40 kg
Origin	Germany
